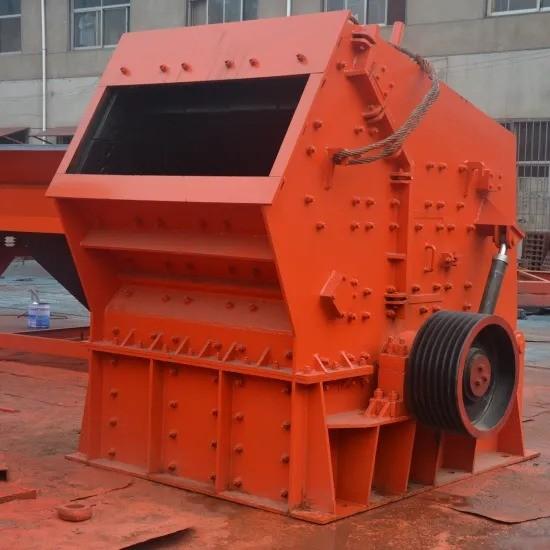

High Cost Performance PCD1010 Ultrafine Hammer Crusher
Technical Parameters
Model: PCD1010
Max Feed Size: 150mm
Production Capacity Of Clinker: 50-60t/h
Production Capacity Of Limestone: 60-70t/h
Average Discharge Size: 3-5mm
Motor Power: 90kw
Technical Parameters Of PCD Serial
| Model | Max feed
(mm) | Treat capacity(T/H) | Average
Discharge granularity
(mm) | Power
(kw) | Dimension(mm) |
| Clinker | Limestone |
| PC-D-8040 | <80 | 15~20 | 20~25 | 3 | 37 | 1395*1506*1390 |
| PC-D-8080 | <80 | 25~30 | 30~40 | 3 | 45 | 1395*1906*1390 |
| PC-D-9080 | <100 | 40~45 | 45~50 | 3 | 45 | 1754*1906*1659 |
| PC-D-9010 | <100 | 45~50 | 50~55 | 3 | 55 | 1754*2176*1659 |
| PC-D-1010 | <150 | 50~60 | 60~70 | 3~5 | 90 | 2138*2590*2021 |
| PC-D-1210 | <200 | 60~80 | 70~90 | 3~5 | 110 | 2524*2716*2325 |
| PC-D-1212 | <200 | 60~100 | 70~110 | 3~5 | 132 | 2524*2866*2325 |
| PC-D-1414 | <200 | 70~150 | 70~160 | 5~8 | 200 | 2550*3120*2670 |
| PC-D-1616 | <200 | 100~210 | 110~260 | 5~8 | 250 | 2922*3564*2900 |
| PC-D-1818 | <200 | 120~270 | 130~310 | 5~10 | 315 | 3121*3754*3150 |
Profile
The series of crushers combines the technical advantages of
crushing equipment at home and abroad, through development and
improvement to make the structure design more optimized. Reasonable
three-room broke chamber combination, novel regulation mechanism,
the product size is fine and even due to effective control,
convenient maintenance equipment, and the hammerhead and the sieve
plate can be replaced conveniently.
Advantages
1, Super long lifespan: New type of quality vanadium molybdenum
multi-element alloy hammerhead can be turned for use, thus the
average service life is increased by 3-4 times.
2, Short-stroke operation: Large crushing ratio, clinker grade I,
II, limestone grade II, III, can be combined into grade I crushing;
3, Convenient maintenance: The rear cover of the upper machine
frame can be opened by hydraulic (manual) operation, making the
replacement of parts and maintenance more convenient.
Product Usage
Usage of PCD series ultrafine energy saving crusher: Widely used in
chemical, building materials, metallurgy, mining, coal processing,
sand making, and refractory industries, etc.
