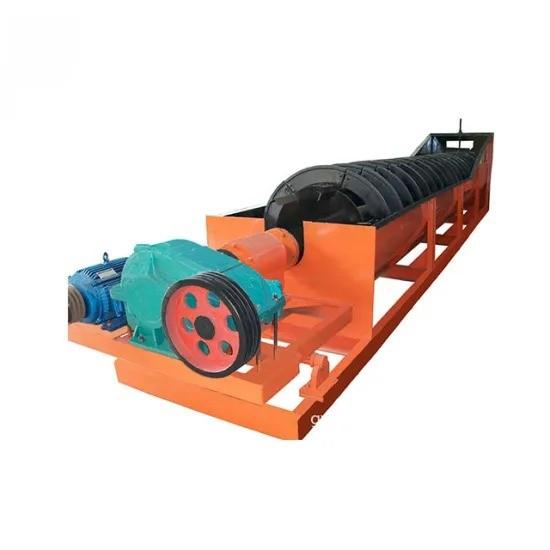

XL915 Small Mining Screw Sand Washing Machine

Technical Parameters

Model: XL915

Screw Diameter: 915mm

Flume length: 7585mm

Max Enter Particle Size: 10mm

Treat Capacity: 100t/h

Speed of screw: 21rpm

Motor Power: 11kw

Water consumption: 10-80t/h

Model technical parameters

Remark: Other specifications can be customized according to user's requirement

Profile
XL series screw type sand gravel washer can clean and separate soil and sundries in sand and stone, it has a novel seal structure, adjustable overflow weir plate, and reliable transmission device, to ensure cleaning and dehydration effect. It is widely used in highways, hydropower, construction, and other industries for washing, sorter, and removing impurities. Wash fine and coarse-grained material, especially suitable for building and road construction.

Application Field

1.Aggregate Washing: Pebble, Basalt, Limestone, Granite, Andsite, Etc.
2.River Sand Washing: Naturel River Sand.
3.Solid Waste Washing: Construction Waste.
4.Sea Sand Washing: Sea Sand, Beach Sand, Etc
