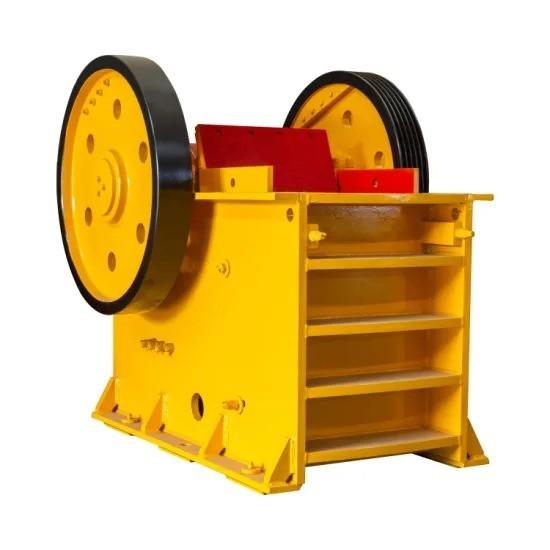

Small Rock PE 400 X 600 Jaw Crusher

Product Basic Parameters

Model: PE400*600

Motor power(kw): 30

Max feed size(mm): 340

Discharge range(mm): 40-100

Processing capacity(t/h): 16~60

Crushing Type: Primary Crusher, Coarse Crusher, Hard Rock Crusher

Technical Parameters Of Series Products

Profile
PE series jaw crusher is a new type of jaw crusher that is researched and developed by our company that we absorb advanced technology, adopt progressive design methods, and combine many years of practical experience. The series crusher can crush all kinds of materials as long as the compressive strength is less than 320 MPA. The maximum feed size can reach 600/1000 mm.

Features
1)Improve the work area of the crusher by unique V-shaped chamber design.
2)Faster speed, stronger crushing performance, larger handling capacity, and higher crushing efficiency. Compared with PE series jaw crusher, its production capacity is 30% increase and the power consumption is 20% reduction.
3)Adopt an overall welding structure frame, with advantages of good rigidity, high strength, and convenient installation and maintenance. The adjustment of the discharge port is convenient and flexible.
4)Adjust the port size by rotating the screw, the method is easy and the adjustment range is larger. The motor is installed on the rack, the space of the whole machine is saved, and easier to tighten the triangle belt.
5)Apply optional vibration-reducing steel frame to lighten a load of foundation effectively and make civil construction easier.
