ZR1500P8L Energy Saving Belt Filter Press

Technical Parameters

Model: ZR1500P8L

Belt width: 1500mm

Mud processingcapacity: 15-25t/h

Filter cakeproduction: 4-5t/h

Sediment percentage: 75-85%

Total power: 13kw

Model technical parameters

Profile
The structure of the belt type filter press is mainly composed of transmission device, liquid mix agitator, feeding distributor, gravity dehydration device, prepress-dewatering porous roller, high-pressure dewatering roller, alignment extrusion roller, tensioning device, frame, deviation correcting device, pneumatic device, filter net, cleaning device, discharging device, bearing and pedestal, filtrate collecting device, protective device, and centralized electric control cabinet.

Details
1. Transmission device
The transmission device consists of the transmission shaft, sealed bearing with seat, and cycloidal needle wheel type reducer. The outer surface of the transmission shaft is coated with high-quality natural rubber, to increase the friction coefficient of the transmission. The rotation rate of the motor is controlled by a frequency converter to ensure the filter belts run stably and the speed is adjustable.

2. Liquid mix agitator
This machine uses a nonblocking static mixer to mix sludge and chemical liquid (Material that is not easy to be flocculated will be treated by stirring dynamic mixer). The machine is installed in front of the sludge distributing flume, and the flocculants come from surrounding into the sludge tube by high-pressure injection and then arrive to the mixed reactor. The sludge particles can collide with diluted polyelectrolyte solution quickly, and the best flocculation effect and dewatering effect can be achieved by adjusting the flow rate of sludge and chemical liquid.

3. Feeding distributor
After passing through the flocculating mixer, the sludge enters the feed distributor. The materials are distributed evenly on the gravity condensed section by flow guiding, overflow plate, leveling plate, and the side baffle. In order to improve the gravity dewatering effect of sludge, a number of water diversion rake teeth are set above the gravity dewatering area, and the free water from the upper part of the accumulated sludge is introduced into the filter net and seep out.

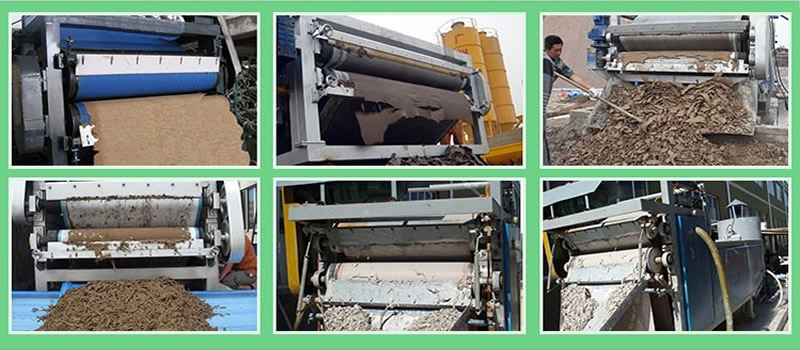

Application

Shanghai ZhongRui environmental protection equipment Co., Ltd. is a new energy enterprise specialized in R&D, design, manufacture, sales, and service, which engaged incomplete set of equipment for crushing and sieving in mines, sludge treatment water recycling system, and other environmental protection and energy-saving products.

Self-developed products have reached the leading position in China, features in high efficiency, low carbon, environmental protection, and no pollution; such as single cylinder hydraulic cone crusher, ultrafine energy saving crusher, hydraulic plate-frame filter press, belt pressure filter, etc.

Products always pursue "high efficiency, energy-saving, environmental protection" and the design concept is advanced. Marketing tenet: do our best to give attentive service. Provide cost-effective products and targeted solutions according to the actual characteristics of the user.

Our company always adheres to the business strategy of "saving enterprise costs, developing circular economy and sharing low carbon life", promote the domestic and foreign markets, and tailor-made different types of energy-saving and environmental protection products for the enterprises in need. We are a faithful partner for energy conservation development.
