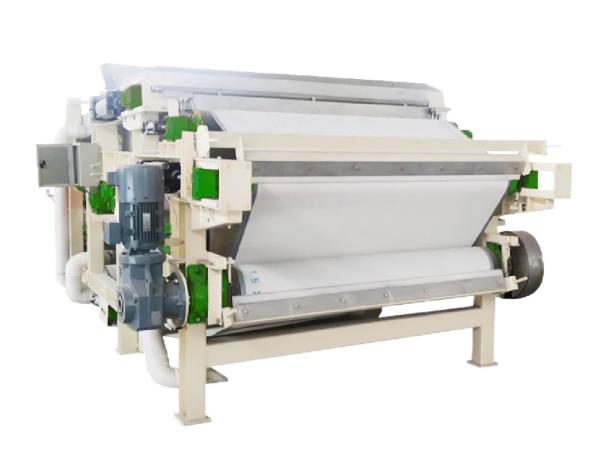

ZR1000P8L Small Belt Filter Press

Technical Parameters

Model: ZR1000P8L

Belt width: 1000mm

Mud processingcapacity: 10-16t/h

Filter cakeproduction: 2-3t/h

Sediment percentage: 75-85%

Total power: 10kw

Profile
The structure of the belt type filter press is mainly composed of transmission device, liquid mix agitator, feeding distributor, gravity dehydration device, prepress-dewatering porous roller, high-pressure dewatering roller, alignment extrusion roller, tensioning device, frame, deviation correcting device, pneumatic device, filter net, cleaning device, discharging device, bearing and pedestal, filtrate collecting device, protective device, and centralized electric control cabinet.

Product Advantages
1. The frame is reinforced, the appearance is elegant, the bearing seat is firm. The equipment is treated with waterproof and the special anti-corrosion process.
2. The gravity dewatering area is equipped with an advanced distributor to make the material distribution uniform and prolong the life of the filter belt.
3. The high degree of automation of continuous operation from feed to discharge mud cake
4. Different materials are equipped with different structures of filter belts, with high filtration accuracy.

Application

Model technical parameters
