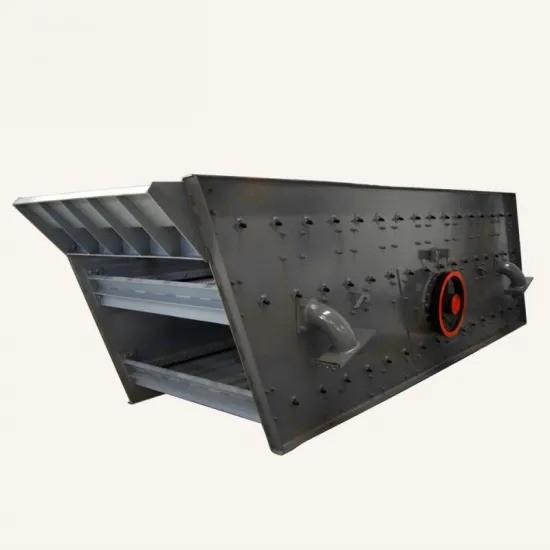

    Vibratory Sand Screening Machine Equipment For Large Construction Stone

    Ask Lasest Price
    Brand Name : ZR
    Model Number : YK
    Price : Price Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000PCS/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Vibratory Sand Screening Machine Equipment For Large Construction Stone

    3YK3072 Large Construction Stone Vibrating Screen


    Technical Parameters

    Model: 3YK3072

    Max Feed Size: 400mm

    Processing Capacity: 300-1280t/h

    Mesh Size: 5-150mm

    Motor Power: 22kw*2


    Product technical parameters

    ModelMax feed size
    (mm)
    Processing capacity
    (t/h)
    Mesh size
    (mm)
    Dimensions
    L*W*H(mm)
    Theoretical weight
    (Ton)
    Motor power
    (kw)
    2YK186040050~3505~806264*2975*34795.618.5
    3YK186040050~3505~806264*2975*39576.8722
    4YK186040050~3505~806264*2975*44908.322
    2YK2160400160~6405~1006298*3323*35987.522
    3YK2160400160~6405~1006298*3323*40118.230
    4YK2160400160~6405~1006298*3388*44909.130
    2YK2460400160~11205~1506374*3702*353210.230
    3YK2460400160~11205~1506374*3702*401111.837
    4YK2460400160~11205~1506374*3710*44481337
    3YK3072400300~12805~1507651*4650*469815.922*2
    4YK3072400300~12805~1507651*4650*528519.922*2
    3YK3682300400-13805-1509184*4473*23273045*2

    Profile
    The circular vibratory screen does circular motion, which is a new type of vibratory screen with multiple layers and high efficiency. The circular vibratory screen adopts a cylinder type eccentric shaft vibration exciter and a partial block to adjust the amplitude, the material screening line is long, and got multiply screening specifications.

    Field Of Application
    Suitable for quarry screening sand and gravel material and coal preparation, mineral processing, building materials, power and chemical industries for product classification.


    Working Principle

    Vibrating screens is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more. Vibrating Screen moves round. It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line. We have always kept in our minds the choices, preferences and the tastes of our all clients. We will offer you suitable type according to your requirements.


    Field Of Application
    Suitable for quarry screening sand and gravel material and coal preparation, mineral processing, building materials, power and chemical industries for product classification.
