    Aggregate Fine Sand Recycling Machinery

    Ask Lasest Price
    Brand Name : ZR
    Model Number : SG
    Price : Price Negotiable
    Payment Terms : T/T
    Supply Ability : 1000PCS/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

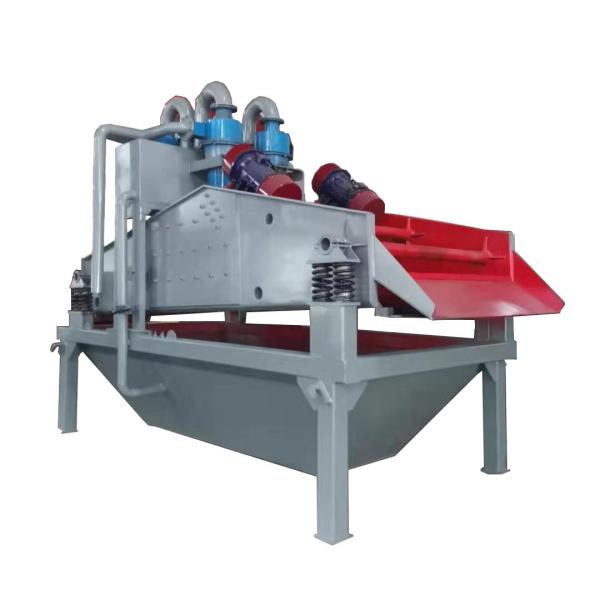

    Aggregate Fine Sand Recycling Machinery

    SG1530-2 Fine Sand Recycling Machine


    Technical Parameters

    Model: 1530-2

    Processing capacity: 100-150t/h

    Vibration power: 2*3kw

    Pump power: 22kw

    Concentrator: 300mm*2


    Model Technical Parameters
    Note: The pump is divided into the vertical pump and horizontal pump, after treatment, solid particles above 200 mesh and solid content 70%-80%.
    The treatment capacity (treatability) varies according to the solid content.

    ModelProcessing capacity
    (Ton/h)
    Vibration power
    (KW)
    Pump power
    (KW)
    ConcentratorDimensions
    (L*W*H)(mm)
    Theoretical weight
    (L*W*H)(mm)
    SG90-150-702*1.17.5-113502840*1270*30161.5
    SG90-270-1002*1.115250*22840*1270*30161.5
    SG1530-2100-1502*322300*23600*1980*33003.8
    SG1530-4180-2002*318.5*2300*43600*1980*33004
    SG1842-2180-2002*3.718.5*2400*24800*2274*37504.5
    SG1842-4200-2802*3.722*2350*44800*2274*37504.7
    SG2046-2200-2202*5.522*2400*24790*2522*37505
    SG2046-4220-3202*5.522*2350*44790*2522*37505.2
    SG2246-2220-3502*5.522*2350*44790*2722*37506
    SG2246-4250-3802*5.530*2400*44790*2722*37506.4
    SG2446-2220-3502*5.522*2350*44790*2922*37506.8
    SG2446-4250-3802*5.530*2400*44790*2922*37507

    Advantages and Characteristics

    •The fine particles are fully recovered, which reduces the workload of the sedimentation tank, the cost of clearing tank also been reduced.
    •Fine sand recovery system reduces the natural storage time of fine materials that can be directly transported to the market.
    •Design, refit and applied to more fields such as commercial concrete companies, wharf sand absorption, and other industries according to the different requirements from the users.


    Hydrocyclone is mainly used in mineral processing
    1 Heavy-medium cyclone is the common heavy-medium separation equipment.
    2 As grading equipment in grinding circuit, especially as grading equipment for fine grinding.
    3. Desliming and concentrating ore pulp.
