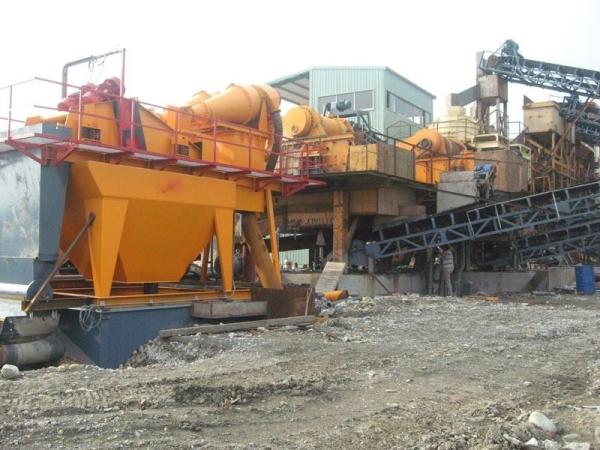

SG1842-2 Artifical Sand Making Recycling Machine

Technical Parameters

Model: 1842-2

Processing capacity: 180-200t/h

Vibration power: 2*3.7kw

Pump power: 2*18.5kw

Concentrator: 400mm*2

Model Technical Parameters
Note: The pump is divided into the vertical pump and horizontal pump, after treatment, solid particles above 200 mesh and solid content 70%-80%.
The treatment capacity (treatability) varies according to the solid content.

Hydrocyclone Structure
The top of the hydrocyclone is a hollow cylinder. The lower part of the hydrocyclone is an inverted cone connected to the cylinder
The two parts constitute the working simplified body of the hydrocyclone. The top part of the cylinder body is tangentially fitted with an ore feed pipe, with an overflow pipe and an overflow conduit at the top. There is a sand sink at the bottom of the conical cylinder. All parts are connected with flanges and screws. Feed ports, cylinders, and sand sinks are usually lined with rubber, polyurethane, silicon carbide or diabase cast stones to reduce wear and replace after wear.

Hydrocyclone is mainly used in mineral processing
1 Heavy-medium cyclone is the common heavy-medium separation equipment.
2 As grading equipment in grinding circuit, especially as grading equipment for fine grinding.
3. Desliming and concentrating ore pulp.
