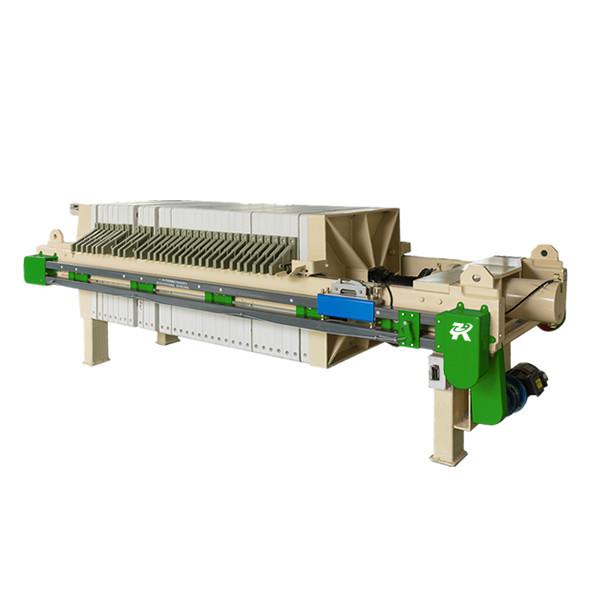

ZR50-800-30U Sewage Treatment Automatic Chamber Pull Plate Filter Press

Technical Parameters

Model: ZR50-800-30U

Filter area: 50m2

Filter plate size: 870*870mm2

Filter cake thickness: 30mm

Filter room volume: 748L

Filter plate quantity: 38pcs

Motor power: 2.2kw

Filter pressure: 0.8Mpa

Technical Parameter Of ZR Serial

Features
Adopt low start variable frequency reducer to pull the plate automatically, PLC program control, save time and effort, simple operation and stable performance.

Working Principle Of Chamber Filter Press

1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

​

Shanghai ZhongRui environmental protection equipment Co., Ltd. is a new energy enterprise specialized in R&D, design, manufacture, sales, and service, which engaged incomplete set of equipment for crushing and sieving in mines, sludge treatment water recycling system, and other environmental protection and energy-saving products.

Self-developed products have reached the leading position in China, features in high efficiency, low carbon, environmental protection, and no pollution; such as single cylinder hydraulic cone crusher, ultrafine energy saving crusher, hydraulic plate-frame filter press, belt pressure filter, etc.

Products always pursue "high efficiency, energy-saving, environmental protection" and the design concept is advanced. Marketing tenet: do our best to give attentive service. Provide cost-effective products and targeted solutions according to the actual characteristics of the user.

Our company always adheres to the business strategy of "saving enterprise costs, developing circular economy and sharing low carbon life", promote the domestic and foreign markets, and tailor-made different types of energy-saving and environmental protection products for the enterprises in need. We are a faithful partner for energy conservation development.
