Large Capacity ZR1000-2000 Automatic Membrane Filter Press

Technical Parameters

Model: ZR1000-2000

Filter area: 1000m2

Filter plate size: 2000*2000mm2

Filter cake thickness: 40mm

Filter room volume: 20000L

Menber filter plate quantity: 70pcs

Chamber filter plate quantity: 69pcs

Motor power: 5.5kw

Filter pressure: 0.8Mpa

Technical Parameter Of ZR Serial

Features
Membrane press filter is composed of diaphragm plates and chamber filter plates, the slurry is fed into the filter chamber under the pressure of the feed pump, the solid and liquid in the slurry are separated by the filter medium (filter cloth). When the solids in the slurry is formed into a cake, the air is introduced into the membrane; the solid in the filter chamber is fully pressed to reduce the moisture content.
Especially for viscous material filtration and users with higher moisture content requirements, this machine has its own unique advantages.
The filter plate is made of reinforced polypropylene molded, the diaphragm is inlaid with the polypropylene plate, it is firm, not easy to fall off, and has a long service life.
It is equipped with a variety of safety devices to ensure the safety of the operator and the normal operation of the filter press.

Why Choose Filter Press From Shanghai Zhong Rui
We have a professional team in sludge filtration R & D and manufacture. Our High-Efficiency Filter Press sells all over the world.
1) Our factory was established in 2008, and we are the leading enterprise in the filter press industry.
2) Our company has a number of product patents.
3) We are a professional team that has many R & D staffs who have been specialized in the industry for more than 20 years.
4) We offer different material filter plates according to a different industries.
5) Our Company also supplies a Jack filter press, Hydraulic compression filter press, Membrane automatic pull plate filter press.
6) We can provide additional function options, such as automatic flushing, convey belt, carbon steel turnover plate, stainless steel turnover plate, etc.

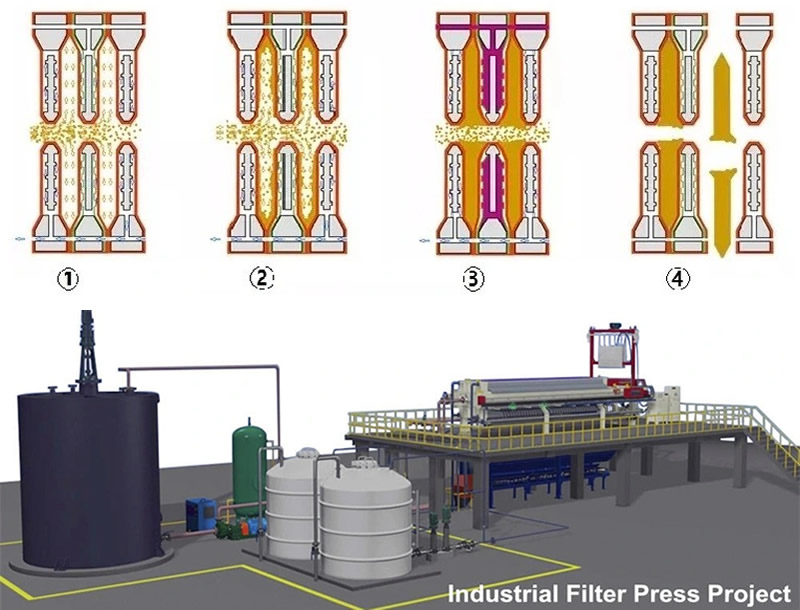

Working Principle Of Chamber Filter Press

Scope Of Application

​​

​​

Shanghai ZhongRui environmental protection equipment Co., Ltd. is a new energy enterprise specialized in R&D, design, manufacture, sales, and service, which engaged incomplete set of equipment for crushing and sieving in mines, sludge treatment water recycling system, and other environmental protection and energy-saving products.

Self-developed products have reached the leading position in China, features in high efficiency, low carbon, environmental protection, and no pollution; such as single cylinder hydraulic cone crusher, ultrafine energy saving crusher, hydraulic plate-frame filter press, belt pressure filter, etc.

Products always pursue "high efficiency, energy-saving, environmental protection" and the design concept is advanced. Marketing tenet: do our best to give attentive service. Provide cost-effective products and targeted solutions according to the actual characteristics of the user.

Our company always adheres to the business strategy of "saving enterprise costs, developing circular economy and sharing low carbon life", promote the domestic and foreign markets, and tailor-made different types of energy-saving and environmental protection products for the enterprises in need. We are a faithful partner for energy conservation development.
