High Efficiency PCD1616 Ultrafine Hammer Crusher
Technical Parameters
Model: PCD1616
Max Feed Size: 200mm
Production Capacity Of Clinker: 100-210t/h
Production Capacity Of Limestone:110-260t/h
Average Discharge Size: 5-8mm
Motor Power: 250kw
Technical Parameters Of PCD Serial
| Model | Max feed
(mm) | Treat capacity(T/H) | Average
Discharge granularity
(mm) | Power
(kw) | Dimension(mm) |
| Clinker | Limestone |
| PC-D-8040 | <80 | 15~20 | 20~25 | 3 | 37 | 1395*1506*1390 |
| PC-D-8080 | <80 | 25~30 | 30~40 | 3 | 45 | 1395*1906*1390 |
| PC-D-9080 | <100 | 40~45 | 45~50 | 3 | 45 | 1754*1906*1659 |
| PC-D-9010 | <100 | 45~50 | 50~55 | 3 | 55 | 1754*2176*1659 |
| PC-D-1010 | <150 | 50~60 | 60~70 | 3~5 | 90 | 2138*2590*2021 |
| PC-D-1210 | <200 | 60~80 | 70~90 | 3~5 | 110 | 2524*2716*2325 |
| PC-D-1212 | <200 | 60~100 | 70~110 | 3~5 | 132 | 2524*2866*2325 |
| PC-D-1414 | <200 | 70~150 | 70~160 | 5~8 | 200 | 2550*3120*2670 |
| PC-D-1616 | <200 | 100~210 | 110~260 | 5~8 | 250 | 2922*3564*2900 |
| PC-D-1818 | <200 | 120~270 | 130~310 | 5~10 | 315 | 3121*3754*3150 |
Advantages
1, High efficiency and energy saving: the motor energy consumption
is reduced by 30% under the same output;
2, Ultra-fine crushing: newly add granularity regulator to ensure
that 85% output of discharge size less than or equal to 3mm
3, Super long lifespan: New type of quality vanadium molybdenum
multi-element alloy hammerhead can be turned for use, thus the
average service life is increased by 3-4 times.
4, Short-stroke operation: Large crushing ratio, clinker grade I,
II, limestone grade II, III, can be combined into grade I crushing;
5, Convenient maintenance: The rear cover of the upper machine
frame can be opened by hydraulic (manual) operation, making the
replacement of parts and maintenance more convenient.

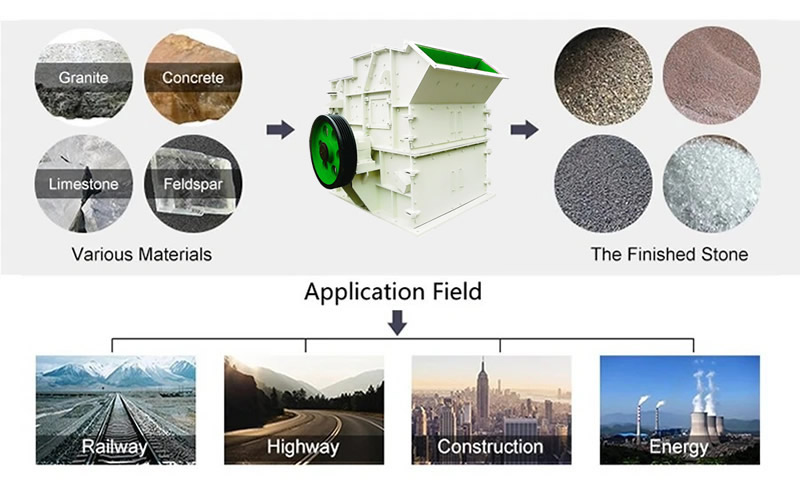

Product Usage
Usage of PCD series ultrafine energy saving crusher: Widely used in
chemical, building materials, metallurgy, mining, coal processing,
sand making, and refractory industries; High-efficiency fine
crushing to treat medium hardness material such as limestone,
cement clinker, shale, dolomite, granite, gypsum, mixed materials,
etc.
